Get Started

Installation

• Add to the VRChat Creator Companion using this link: Add to the VCC
• Make sure the "orels-Music-System" Repository is added and selected in the Settings screen
• Open your World project and add the "ORL Music System" Package

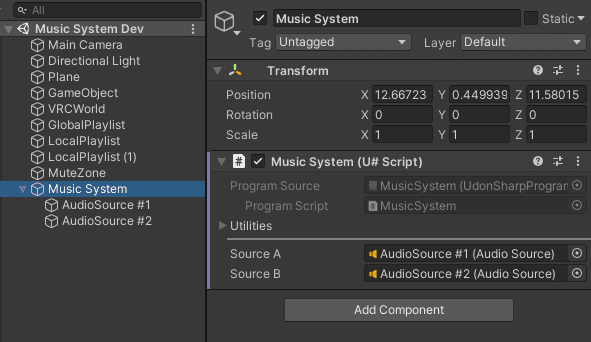

Basic Setup

• Make a new GameObject and add the MusicSystem component to it
• Create two AudioSources, set them to 2D and set everything else the way you like
• Drag the AudioSources into the MusicSystem's Source A and Source B slots

Now let's add some music that will play all across your world!

• Create another GameObject anywhere in the scene and add the GlobalPlaylist component to it
• Set the Music System reference to your MusicSystem GameObject. If you only have one - a button will be shown to quickly assign it
• Add your Audio Clips to the Playlist array
• Configure the settings to your liking

Most settings have tooltips or other help messages!

If you need localized music playback for specific areas of your world - you can utilize LocalPlaylist components

• Add the LocalPlaylist component to any GameObject
• Configure it similarly to the GlobalPlaylist component
• Add a Trigger Collider to the same game object, and you should be good to go!

If you ever need to stop the music when the player enters an area - you can use the MuteZone component

• Add MuteZone to any GameObject with a Trigger collider and it should work automatically

That's it for a general overview! If you want to learn about all the settings - keep reading!

If you ever encounter any issues - hop by the Discord and ask for help!

Components

Music System

Music System component is the heart of the whole system. It is the only component that runs an Update loop, coordinates the various playlists and manages the Audio Sources

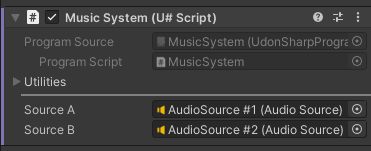

Configuration

The only options available are the two Audio Sources that will be used for playback

• Source A
• Source B

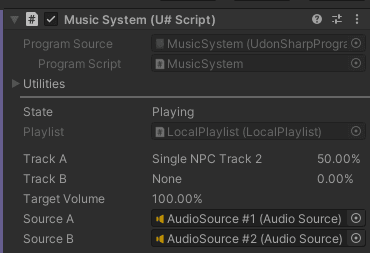

Runtime

When entering Play mode - the Music System component will show some information about its state

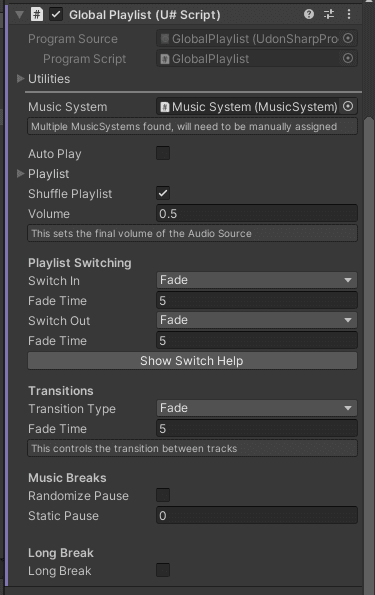

Playlist Options

Every "Playlist" component (e.g. Global Playlist and Local Playlist) share the following set of options

• Music System: Reference to a Music System that will be used for playback. You can have multiple Music Systems in your scene to have simultaneous playback of multiple clips
• Playlist: Contains all the tracks that will be played
• Shuffle Playlist: Shuffles the playlist on load and every time the end is reached
• Volume: Sets the final volume of the AudioSource when playing this playlist
• Playlist Switching: This section controls how the playlist behaves when switching from and to it
  • Switch In: Sets the type of transition when switching to this playlist
    • Cut: switches immediately
    • Fade: fades the music in gradually when switching to the playlist
    • Fade Time: Controls how long the fade in lasts. Only visible when Switch In is set to Fade
  • Switch Out: Same as Switch In but for when switching out of this playlist to something else
• Transitions: This section controls how playlist switches between tracks
  • Transition Type: Sets how the tracks are blended together
    • Cut: switches immediately
    • Fade: fades the music out and in when switching between tracks
    • Cross Fade: fades in and out simultaneously, allowing for a smooth transition
  • Fade Time: Controls how long the fade out and fade in lasts. Only visible when Transition Type us set to Fade
  • Cross Fade Curve: Controls the cross-fade blend. Only visible when Transition Type us set to Cross Fade.
    • When the Curve is at Time 0 (far left) and at Value 0 (bottom) - the Track B (current track) is at 100% and Track A (next track) is at 0%
    • When the Curve is at Time 1 (far right) and at Value 1 (top) - the Track B (current track) is at 0% and Track A (next track) is at 100%
    • This allows you to create custom cross-fade curves and blend the tracks in any way you like
  • Cross Fade Time: Controls how long the cross-fade lasts. Only visible when Transition Type us set to Cross Fade
• Music Breaks: This section controls any pauses between individual tracks
  • Randomize Pause: Enables randomisation of the pause time between tracks
    • Pause Min: Minimum possible pause time
    • Pause Max: Maximum possible pause time
  • Static Pause: If set to anything above 0 - adds a pause between trecks for the specified time in seconds
• Long Break: This section controls a long pause between tracks after X amount of tracks were played
  • Long Break: Enables the long break
  • Track Count: Defines how many tracks will be played before doing a long break
  • Reset on Switch: If enabled - the track count will reset when switching to another playlist. In practical terms, this means that the player will need to listen to X tracks in a row before the long break will trigger
  • Break Time: Duration of the long break in seconds

Global Playlist

Global Playlist component is used to play music across the whole world. It is the simplest way to get started with the Music System

Configuration

Beyond the options listed in the Playlist Options section, Global Playlist provides the following settings

• Auto Play: Starts the playlist automatically when entering Play mode / loading the world

Local Playlist

Local Playlist component is used to play music in a particular area defined by a collider. It is useful for creating localized music playback

Usage

• Add the Local Playlist component to any GameObject
• Add a Trigger collider of some sort to the same GameObject
• Set the Layer of the GameObject to "MirrorReflection"

Configuration

Beyond the options listed in the Playlist Options section, Global Playlist provides the following settings

• Zone Settings
  • Player Stay Delay: Controls how long the player must be present in the zone before the playlist starts playing

Mute Zone

Mute Zone allows you to easily mute all music when entering an area

Usage

• Add a Mute Zone component to any GameObject
• Add a Trigger collider of some sort to the same GameObject
• Set the Music System to the Music System you would like to mute
  • If you want to mute more than 1 Music System - you can add multiple Mute Zone components to the same GameObject

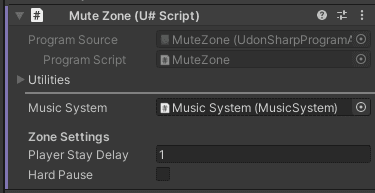

Configuration

• Music System: Reference to a Music System that will be muted when entering the zone
• Zone Settings
  • Player Stay Delay: Controls how long the player must be present in the zone before the music is muted
• Hard Pause: If enabled - the music will be cut immediately as soon as Player Stay Delay passes. Otherwise - the music will follow the playlist switching rules and fade out if necessary
